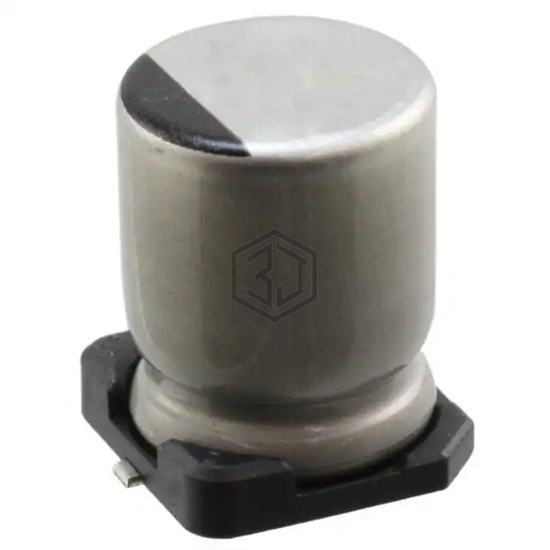

CAP ALUM 1UF 20% 400V SMD
UUB2G010MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 3,885
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
| Ripple Current @ High Frequency | 39 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUB2G1R2MNL1GS | Nichicon | CAP ALUM 1.2UF 20% 400V SMD | 85% | View |
| UUB2G1R8MNL1GS | Nichicon | CAP ALUM 1.8UF 20% 400V SMD | 76% | View |
| ULT2H1R8MNL1GS | Nichicon | CAP ALUM 1.8UF 20% 500V SMD | 58% | View |
| 25MF105KA13216 | Rubycon | CAP FILM 1UF 10% 25VDC 1206 | 56% | View |
| 16MF105KA13216 | Rubycon | CAP FILM 1UF 10% 16VDC 1206 | 56% | View |
