CAP ALUM 33UF 20% 35V SMD

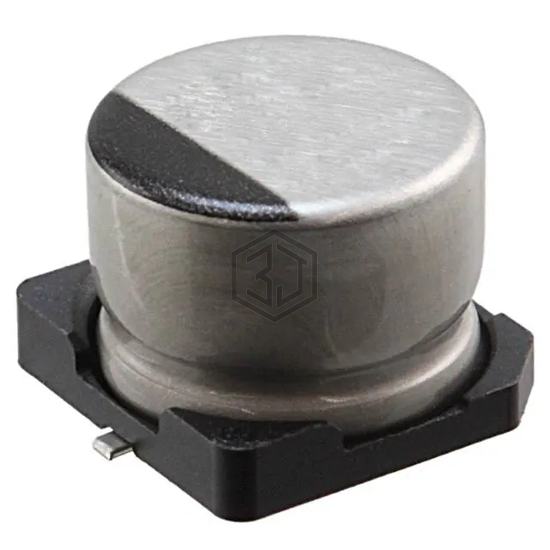

UUB1V330MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,786
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWH1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 84% | View |
| UCJ1E330MCL1GS | Nichicon | CAP ALUM 33UF 20% 25V SMD | 84% | View |
| EDT336M035A9LAA | KEMET | CAP ALUM 33UF 20% 35V SMD | 83% | View |
| AEH0608330M050R | KYOCERA AVX | ALUMINUM CAP | 76% | View |
| EEE-TG1K330UP | Panasonic Electronic Components | CAP ALUM 33UF 20% 80V SMD | 70% | View |
| ULT2C330MNL1GS | Nichicon | CAP ALUM 33UF 20% 160V SMD | 59% | View |
