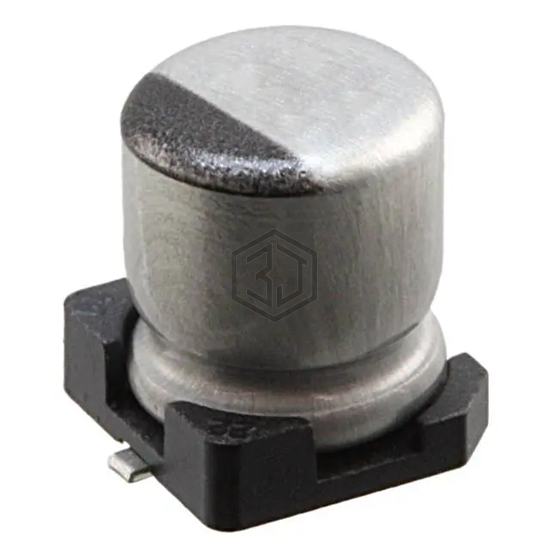

CAP ALUM 10UF 20% 35V SMD
UUA1V100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,926
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 106SVL035MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 35V SMD | 95% | View |
| CTB1H100MCB0558 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 77% | View |
| UT106M063HEHTA | Aillen | CAP. ALUM 10UF 63V 20% SMD | 75% | View |
| UUA1C100MCL1GS | Nichicon | CAP ALUM 10UF 20% 16V SMD | 60% | View |
| MAL213968109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 63V SMD | 59% | View |
| AVEZ106M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 59% | View |
Submit your RFQ for UUA1V100MCL1GS and get a quote within 24 hours.
