CAP ALUM 47UF 20% 50V SMD

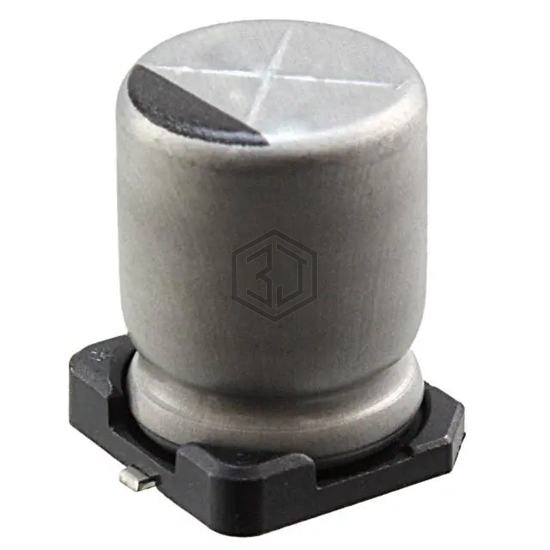

UUA1H470MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 255 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUX1H470MNL6GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 97% | View |
| EEV476M035A9GAA | KEMET | CAP ALUM 47UF 20% 35V SMD | 87% | View |
| EEE-FK1C470AL | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 75% | View |
| VZH470M1CTR-0606S | SURGE | CAP ALUM 47UF 20% 16V SMD | 68% | View |
| MAL214699101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V SMD | 62% | View |
| EXV476M050A9PAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 53% | View |
Submit your RFQ for UUA1H470MNL1GS and get a quote within 24 hours.
