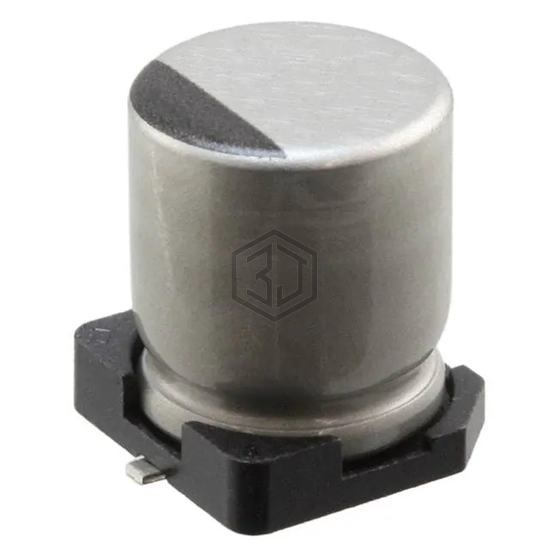

CAP ALUM 47UF 20% 25V SMD
UUA1E470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,336
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 63 mA @ 120 Hz |
| Ripple Current @ High Frequency | 94.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1E470MCL6GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 97% | View |
| CTB1E470MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 87% | View |
| EEE-FN1C470UR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 84% | View |
| 476SVL016MEW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 16V SMD | 84% | View |
| AVES476M16D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 16V SMD | 68% | View |
| CED1C470MCB0558 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
Submit your RFQ for UUA1E470MCL1GS and get a quote within 24 hours.
