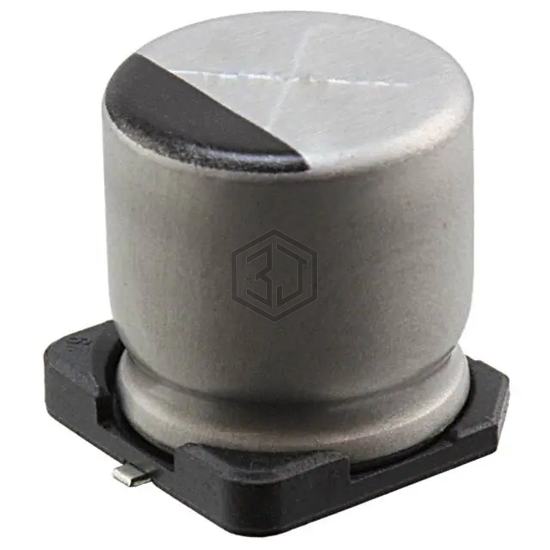

CAP ALUM 330UF 20% 16V SMD
UUA1C331MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | 435 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EXV337M016A9MAA | KEMET | CAP ALUM 330UF 20% 16V SMD | 83% | View |
| EEV337M016A9MAA | KEMET | CAP ALUM 330UF 20% 16V SMD | 83% | View |
| 25SGV330M10X10.5 | Rubycon | CAP ALUM 330UF 20% 25V SMD | 67% | View |
| UUD1V331MNL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 65% | View |
| EMZR350ADA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 54% | View |
| EMZA350ADA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 54% | View |
Submit your RFQ for UUA1C331MNL1GS and get a quote within 24 hours.
