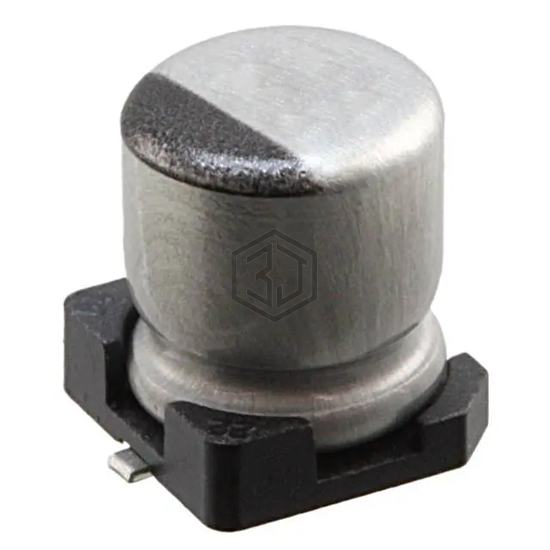

CAP ALUM 22UF 20% 16V SMD
UUA1C220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,674
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 45 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUT1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 100% | View |
| UWT1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 81% | View |
| MAL213966229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 25V SMD | 71% | View |
| EMVY6R3ADA220MD55G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 67% | View |
| VZH220M1CTR-0506S | SURGE | CAP ALUM 22UF 20% 16V SMD | 64% | View |
| 226SVL050MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V SMD | 53% | View |
Submit your RFQ for UUA1C220MCL1GS and get a quote within 24 hours.
