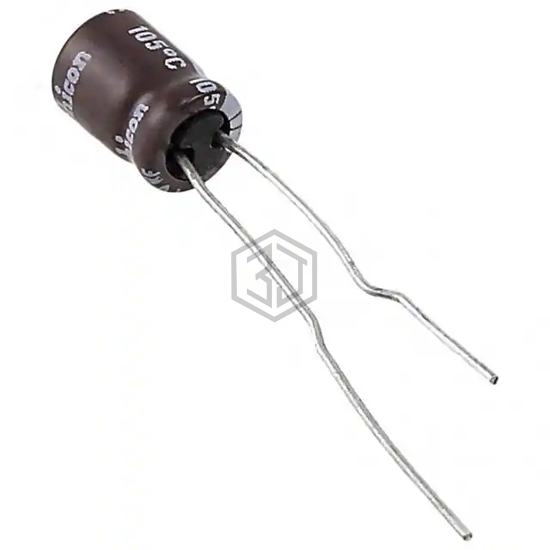

CAP ALUM 4.7UF 20% 50V RADIAL
UTT1H4R7MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,556
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37 mA @ 100 kHz |
| Impedance | 14 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UTT1H4R7MDD is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UTT1H4R7MDD1TP | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 100% | View |
| MAL214278478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 63V RADIAL | 78% | View |
| 35ML4.7MEFC4X5 | Rubycon | CAP ALUM 4.7UF 20% 35V RADIAL | 77% | View |
| EKMA500ELL4R7ME07D | United Chemi-Con | CAP ALUM 4.7UF 20% 50V RADIAL | 76% | View |
| ESE475M050AC3AA | KEMET | CAP ALUM RAD 105C | 72% | View |
| ESW475M025AC3AA | KEMET | CAP ALUM 4.7UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UTT1H4R7MDD and get a quote within 24 hours.
