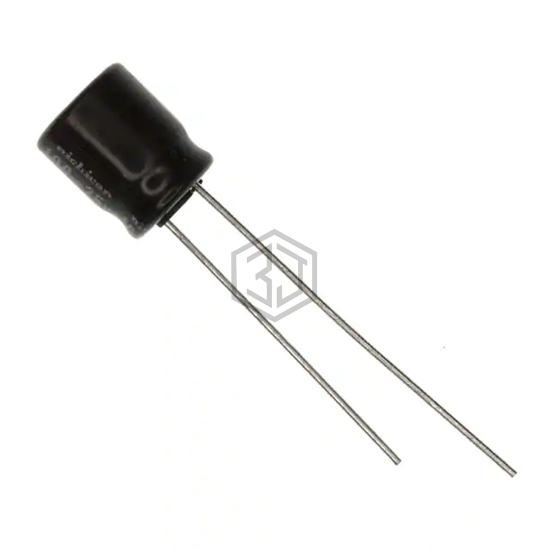

CAP ALUM 470UF 20% 16V RADIAL
UTT1C471MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 178.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 298 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204855471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 77% | View |
| 672D477H025ET5J | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 71% | View |
| 477CKH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| MAL211834471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 10V AXIAL | 70% | View |
| 10YXG470MEFCTA6.3X11 | Rubycon | CAP ALUM 470UF 20% 10V RADIAL | 70% | View |
| 860080375014 | Würth Elektronik | CAP ALUM 470UF 20% 16V RADIAL | 64% | View |
Submit your RFQ for UTT1C471MPD1TA and get a quote within 24 hours.
