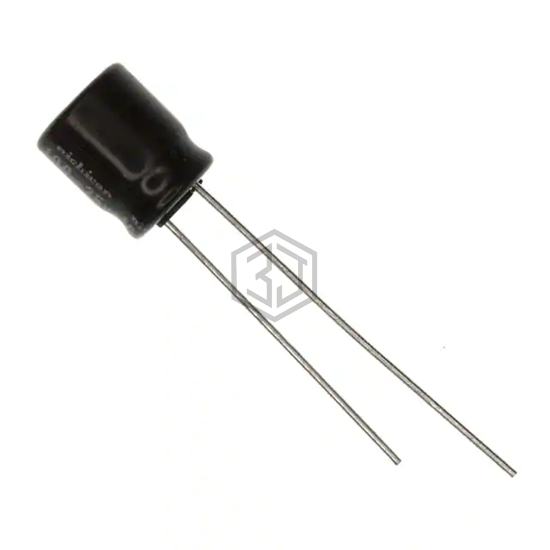

CAP ALUM 220UF 20% 16V RADIAL
UTT1C221MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,924
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 138 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UTT1C221MPD1TA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 630D227H016DF5A | Vishay Sprague | CAP ALUM 220UF 16V AXIAL | 100% | View |
| UTT1E221MPD1TA | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 74% | View |
| 25RX30220MTA8X11.5 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 61% | View |
| ED1J221MP51016 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 58% | View |
| UBW1C221MPD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 57% | View |
| EKRG100ETC221MF09D | United Chemi-Con | CAP ALUM 220UF 20% 10V RADIAL | 57% | View |
Submit your RFQ for UTT1C221MPD1TA and get a quote within 24 hours.
