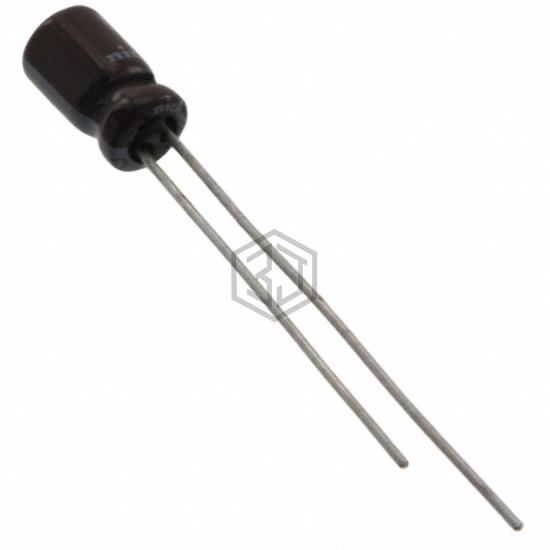

CAP ALUM 2.2UF 20% 50V RADIAL
UTS1H2R2MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,845
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 22 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UTS1H2R2MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TBE1H2R2MAD | Nichicon | CAP ALUM 2.2UF 20% 50V AXIAL | 100% | View |
| MAL212367228 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 40V AXIAL | 84% | View |
| MAL212380228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 35V AXIAL | 81% | View |
| UPS1H2R2MDD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 77% | View |
| 50YXM2R2MEFR5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 77% | View |
| 50YXJ2R2M5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for UTS1H2R2MDD and get a quote within 24 hours.
