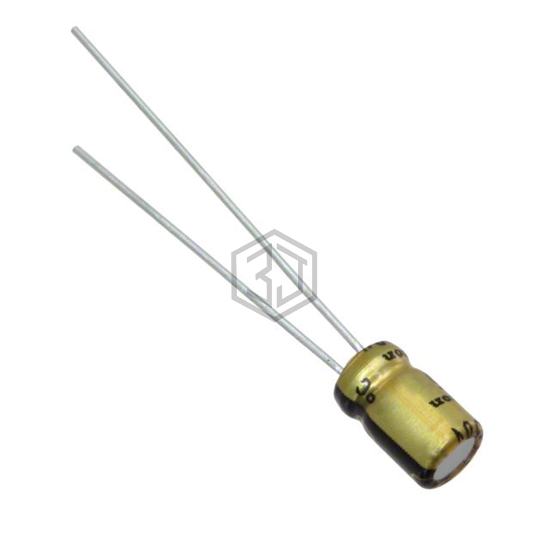

CAP ALUM 33UF 20% 6.3V RADIAL
USW0J330MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,716
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USW0J330MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP2A330MHD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 100% | View |
| 10ML33MEFCT54X7 | Rubycon | CAP ALUM 33UF 20% 10V RADIAL | 79% | View |
| 672D336H100EK5C | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 56% | View |
| B41858C9336M000 | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 100V RADIAL | 56% | View |
| 336BPS016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 16V RADIAL | 56% | View |
| 25MS733MEFCTZ6.3X7 | Rubycon | CAP ALUM 33UF 20% 25V RADIAL | 55% | View |
