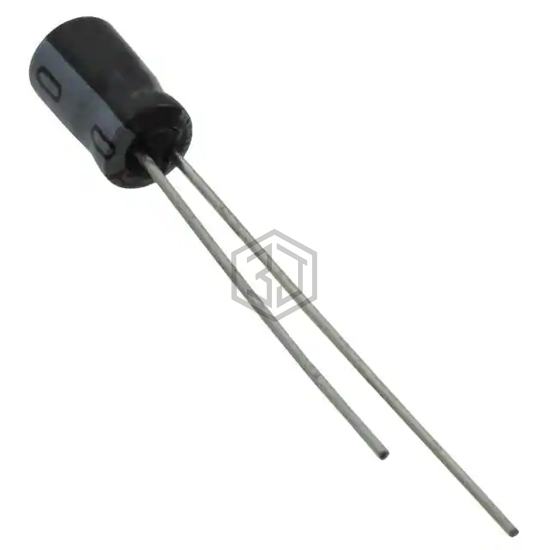

CAP ALUM 4.7UF 20% 35V RADIAL
UST1V4R7MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,085
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24 mA @ 120 Hz |
| Ripple Current @ High Frequency | 36 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1V4R7MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212380478 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 35V AXIAL | 94% | View |
| UMF1V4R7MDD1TP | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 91% | View |
| UVZ1E4R7MDD1TD | Nichicon | CAP ALUM 4.7UF 20% 25V RADIAL | 81% | View |
| 475KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V RADIAL | 76% | View |
| UVZ1H4R7MDD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 72% | View |
| UBW1H4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for UST1V4R7MDD and get a quote within 24 hours.
