CAP ALUM 22UF 20% 50V RADIAL

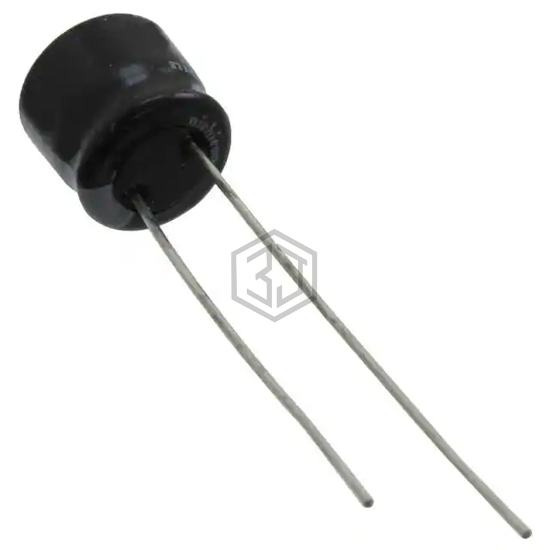

UST1H220MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,468
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 97.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1H220MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UST1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 100% | View |
| URZ1H220MDD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 93% | View |
| EEA-GA1V220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 85% | View |
| EKMG630ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 63V RADIAL | 84% | View |
| EY1H220MP20511ERU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 74% | View |
| EKMG101ETC220MHB5D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 57% | View |
Submit your RFQ for UST1H220MDD1TD and get a quote within 24 hours.
