CAP ALUM 0.1UF 20% 50V RADIAL

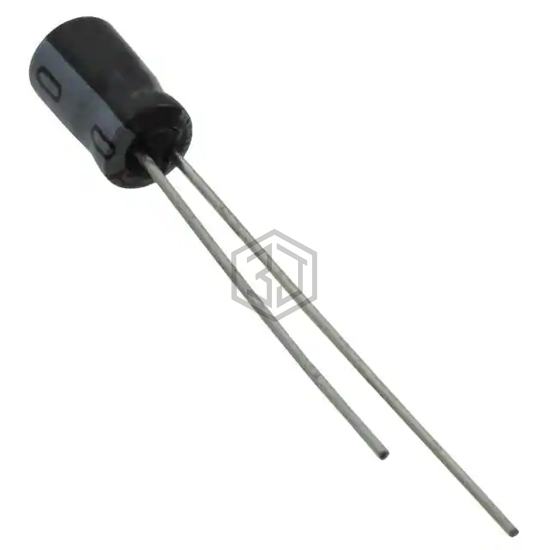

UST1H0R1MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.1UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,021
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1H0R1MDD1TP is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1HR10 | Panasonic Electronic Components | CAP ALUM 0.1UF 20% 50V RADIAL | 95% | View |
| EEU-HD1HR10 | Panasonic Electronic Components | CAP ALUM 0.1UF 20% 50V RADIAL | 89% | View |
| UVZ1H0R1MDD1TA | Nichicon | CAP ALUM 0.1UF 20% 50V RADIAL | 81% | View |
| UVY1H0R1MDD1TA | Nichicon | CAP ALUM 0.1UF 20% 50V RADIAL | 81% | View |
| UVZ1H0R1MDD | Nichicon | CAP ALUM 0.1UF 20% 50V RADIAL | 81% | View |
| ECA-1HHG0R1B | Panasonic Electronic Components | CAP ALUM 0.1UF 20% 50V RADIAL | 71% | View |
