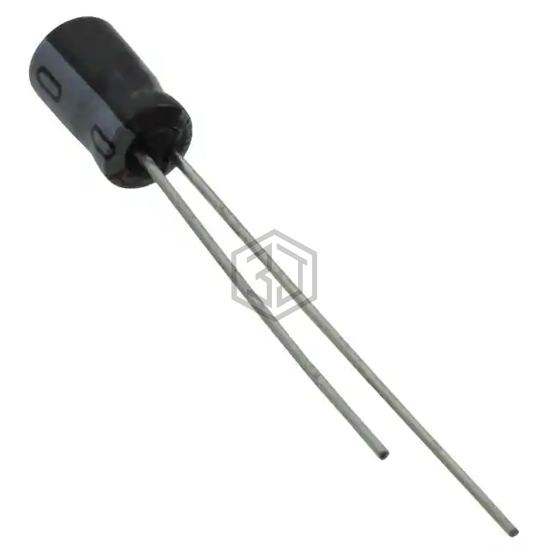

CAP ALUM 1UF 20% 50V RADIAL
UST1H010MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,442
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | 15 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1H010MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMA500ETD1R0MD07D | United Chemi-Con | CAP ALUM 1UF 20% 50V RADIAL | 100% | View |
| EEA-GA1H1R0B | Panasonic Electronic Components | CAP ALUM 1UF 20% 50V RADIAL | 99% | View |
| B41043A6105M | EPCOS - TDK Electronics | CAP ALUM 1UF 20% 50V RADIAL | 95% | View |
| 50NXA1MEFC5X11 | Rubycon | CAP ALUM 1UF 20% 50V RADIAL | 91% | View |
| EEU-FC1H1R0 | Panasonic Electronic Components | CAP ALUM 1UF 20% 50V RADIAL | 91% | View |
| UBX1V010MPL1TD | Nichicon | CAP ALUM 1UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for UST1H010MDD1TP and get a quote within 24 hours.
