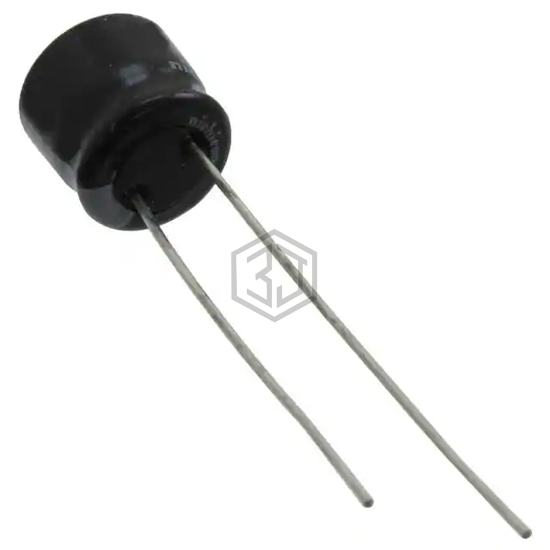

CAP ALUM 47UF 20% 25V RADIAL
UST1E470MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,949
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 117 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1E470MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UST1E470MDD1TA | Nichicon | CAP ALUM 47UF 20% 25V RADIAL | 100% | View |
| ECA-1EHG470C | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V RADIAL | 93% | View |
| 16YXA47M5X11 | Rubycon | CAP ALUM 47UF 20% 16V RADIAL | 85% | View |
| MAL212386479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 25V AXIAL | 77% | View |
| UVZ1A470MDD | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 72% | View |
| MAL211661479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for UST1E470MDD1TD and get a quote within 24 hours.
