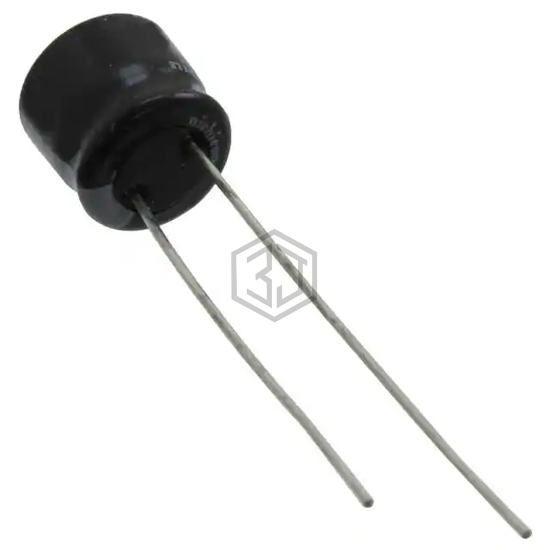

CAP ALUM 47UF 20% 25V RADIAL
UST1E470MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,009
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 117 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1E470MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D476H025CC5D | Vishay Sprague | CAP ALUM 47UF 25V RADIAL | 100% | View |
| MAL212316479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 25V AXIAL | 100% | View |
| KMG25VB47RM5X11LL | United Chemi-Con | CAP ALUM 47UF 20% 25V RADIAL | 99% | View |
| UKT1E470MDD1TA | Nichicon | CAP ALUM 47UF 20% 25V RADIAL | 90% | View |
| UEP1C470MED1TA | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 80% | View |
| 63PX47MEFC6.3X11 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 51% | View |
Submit your RFQ for UST1E470MDD and get a quote within 24 hours.
