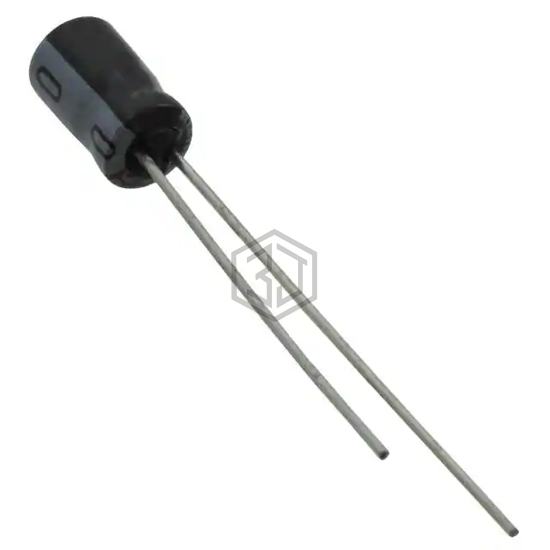

CAP ALUM 10UF 20% 16V RADIAL
UST1C100MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,717
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST1C100MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1C100H | Panasonic Electronic Components | CAP ALUM 10UF 20% 16V RADIAL | 98% | View |
| URZ1C100MDD1TD | Nichicon | CAP ALUM 10UF 20% 16V RADIAL | 91% | View |
| URZ1E100MDD1TA | Nichicon | CAP ALUM 10UF 20% 25V RADIAL | 75% | View |
| EEA-FC1E100B | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V RADIAL | 68% | View |
| UPW1J100MDD1TA | Nichicon | CAP ALUM 10UF 20% 63V RADIAL | 67% | View |
| UEP1J100MED | Nichicon | CAP ALUM 10UF 20% 63V RADIAL | 61% | View |
Submit your RFQ for UST1C100MDD and get a quote within 24 hours.
