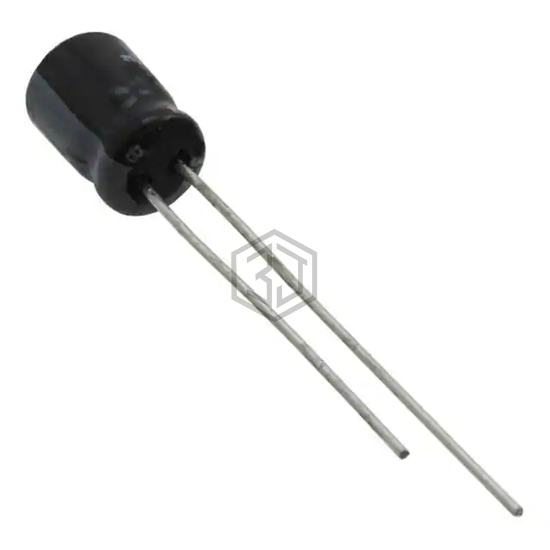

CAP ALUM 33UF 20% 6.3V RADIAL
UST0J330MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,522
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST0J330MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP0J330MDD1TA | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 100% | View |
| UPS0J330MDD1TA | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 86% | View |
| UPW1A330MDD6TP | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 76% | View |
| SEK330M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| SEK330M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 16V RADIAL | 55% | View |
| UBW1J330MPD1TA | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 53% | View |
Submit your RFQ for UST0J330MDD and get a quote within 24 hours.
