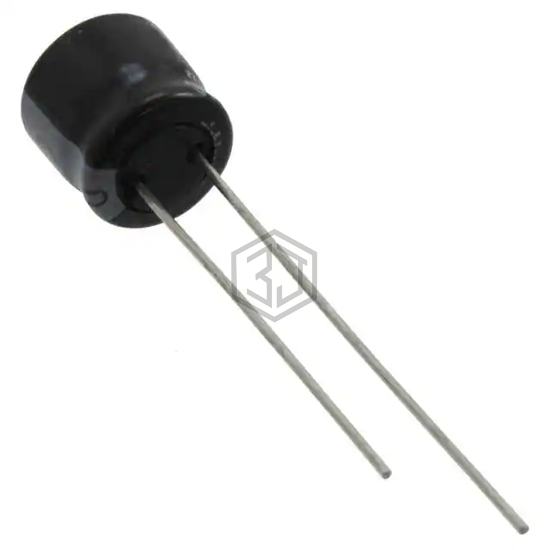

CAP ALUM 330UF 20% 6.3V RADIAL
USR0J331MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,545
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USR0J331MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK331M0JBK-0615S | Surge | CAP ALUM 6.3V POLAR | 89% | View |
| REA0812331M006K | KYOCERA AVX | CAP ALUM 330UF 20% 6.3V RADIAL | 86% | View |
| 337SAK6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 6.3V RADIAL | 84% | View |
| UPB1C331MPD1TD | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 76% | View |
| 337RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 56% | View |
| MAL213290509E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 16V AXIAL | 53% | View |
Submit your RFQ for USR0J331MDD and get a quote within 24 hours.
