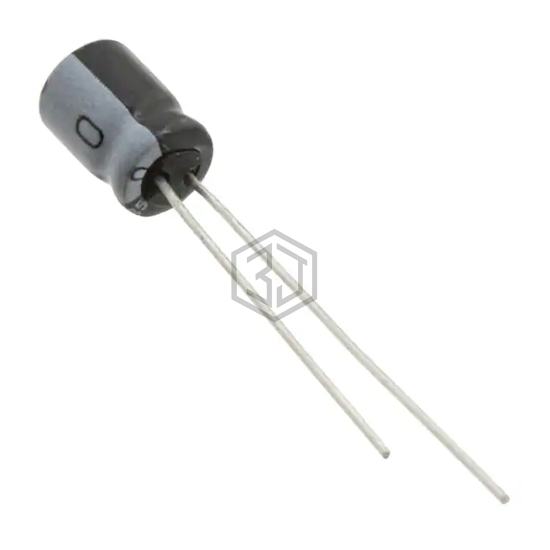

CAP ALUM 33UF 20% 6.3V RADIAL
USR0J330MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,002
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USR0J330MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPB1H330MED1TA | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 61% | View |
| UPB1H330MED | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 61% | View |
| UMA1V330MDD1TE | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 57% | View |
| NEH33M35BB | NTE Electronics, Inc | CAP ALUM 33UF 20% 35V AXIAL | 56% | View |
| 35ZLG33MEFC5X11 | Rubycon | CAP ALUM 33UF 20% 35V RADIAL | 52% | View |
| UBT1J330MPD | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 51% | View |
Submit your RFQ for USR0J330MDD1TP and get a quote within 24 hours.
