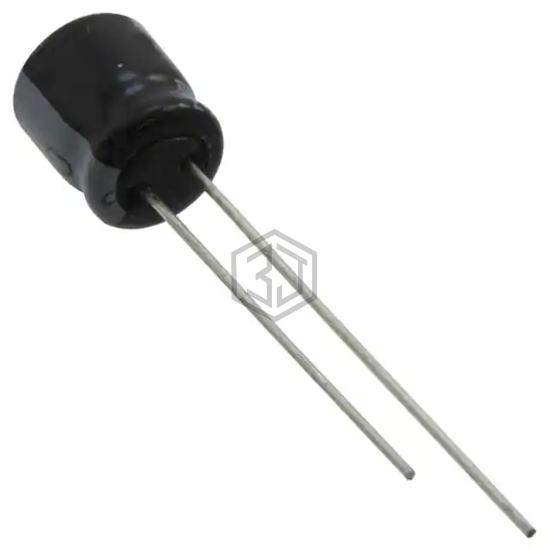

CAP ALUM 220UF 20% 6.3V RADIAL
USR0J221MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,771
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USR0J221MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3MS5220MEFCT58X5 | Rubycon | CAP ALUM 220UF 20% 6.3V RADIAL | 95% | View |
| MAL211824221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V AXIAL | 78% | View |
| EEU-EB1A221SH | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V RADIAL | 74% | View |
| 10MH7220MEFCT56.3X7 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 70% | View |
| MAL203034221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 10V AXIAL | 63% | View |
| MAL211836221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V AXIAL | 63% | View |
