CAP ALUM 22UF 20% 25V RADIAL

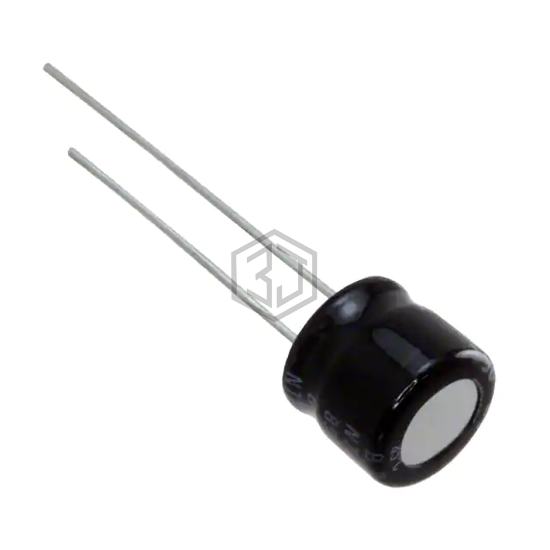

USP1E220MDD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,543
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 53 mA @ 120 Hz |
| Ripple Current @ High Frequency | 79.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USP1E220MDD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-A1VKS220I | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 81% | View |
| EGXE350ELL220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 35V RADIAL | 78% | View |
| ELE-500ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 50V RADIAL | 68% | View |
| EEU-HD1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 62% | View |
| SK220M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V RADIAL | 56% | View |
| 517D226M050JA6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for USP1E220MDD1TE and get a quote within 24 hours.
