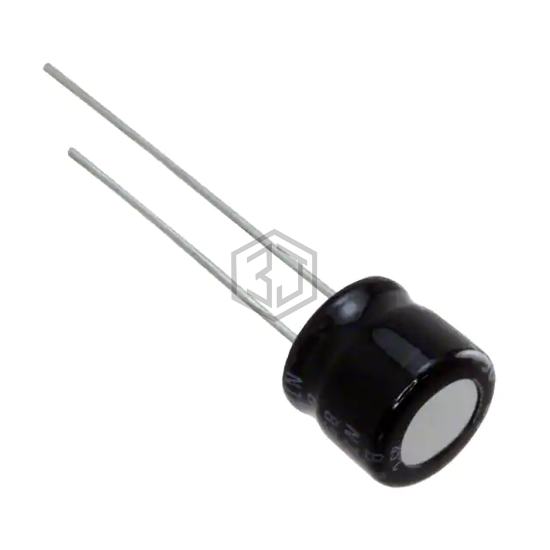

CAP ALUM 220UF 20% 6.3V RADIAL
USP0J221MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 3,041
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USP0J221MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USV0J221MFD1TA | Nichicon | CAP ALUM 220UF 20% 6.3V RADIAL | 96% | View |
| 6.3MS7220M6.3X7 | Rubycon | CAP ALUM 220UF 20% 6.3V RADIAL | 92% | View |
| 10PX220MEFCT15X11 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 81% | View |
| SEK221M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 10V RADIAL | 79% | View |
| 227CKE010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 10V RADIAL | 74% | View |
| MAL214236221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 58% | View |
