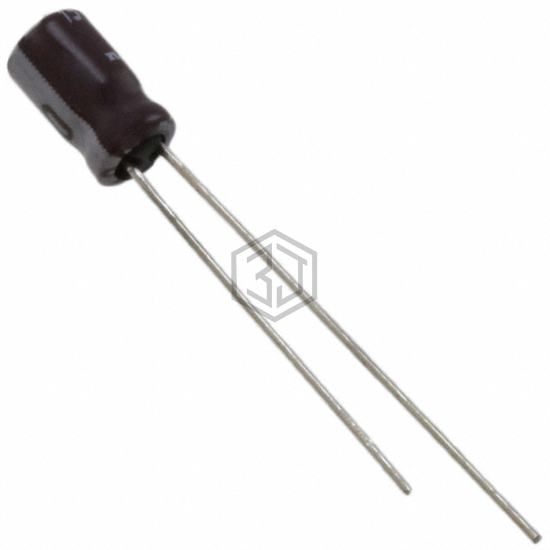

CAP ALUM 6.8UF 20% 35V RADIAL
USF1V6R8MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,877
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 3.3 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1V6R8MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-FC1V6R8H | Panasonic Electronic Components | CAP ALUM 6.8UF 20% 35V RADIAL | 87% | View |
| EEA-GA1H6R8H | Panasonic Electronic Components | CAP ALUM 6.8UF 20% 50V RADIAL | 85% | View |
| MAL212320688 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 35V AXIAL | 80% | View |
| UPV1H6R8MFD1TA | Nichicon | CAP ALUM 6.8UF 20% 50V RADIAL | 77% | View |
| UPJ1H6R8MDD | Nichicon | CAP ALUM 6.8UF 20% 50V RADIAL | 77% | View |
| 600D685F100KD4 | Vishay Sprague | CAP ALUM 6.8UF 100V AXIAL | 71% | View |
Submit your RFQ for USF1V6R8MDD and get a quote within 24 hours.
