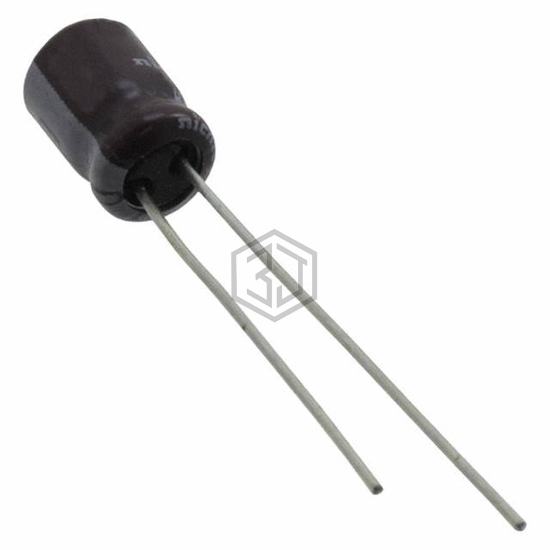

CAP ALUM 15UF 20% 25V RADIAL
USF1E150MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,765
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1E150MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212360159E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 35V AXIAL | 81% | View |
| UPM1K150MED | Nichicon | CAP ALUM 15UF 20% 80V RADIAL | 75% | View |
| UPJ1K150MED | Nichicon | CAP ALUM 15UF 20% 80V RADIAL | 75% | View |
| EEA-FC1C150B | Panasonic Electronic Components | CAP ALUM 15UF 20% 16V RADIAL | 70% | View |
| EEA-GA1C150H | Panasonic Electronic Components | CAP ALUM 15UF 20% 16V RADIAL | 56% | View |
| EEA-GA1C150B | Panasonic Electronic Components | CAP ALUM 15UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for USF1E150MDD and get a quote within 24 hours.
