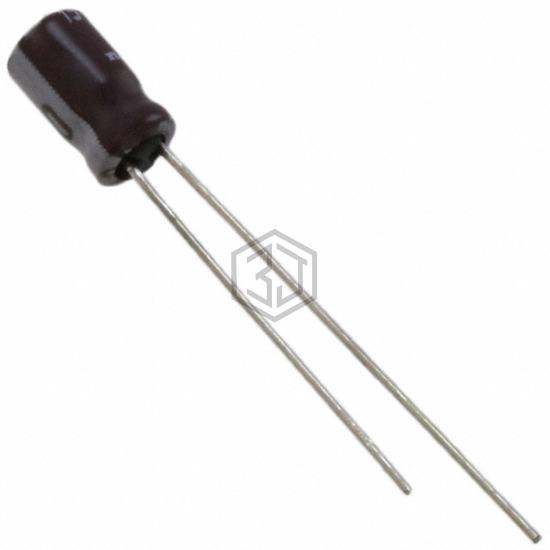

CAP ALUM 15UF 20% 16V RADIAL
USF1C150MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,871
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 3.3 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1C150MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1C150H | Panasonic Electronic Components | CAP ALUM 15UF 20% 16V RADIAL | 98% | View |
| EEA-GA1C150B | Panasonic Electronic Components | CAP ALUM 15UF 20% 16V RADIAL | 98% | View |
| MAL212365159 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 16V AXIAL | 88% | View |
| MAL212385159 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 16V AXIAL | 88% | View |
| EEA-FC1C150B | Panasonic Electronic Components | CAP ALUM 15UF 20% 16V RADIAL | 87% | View |
| 672D156H060CD5C | Vishay Sprague | CAP ALUM 15UF 60V RADIAL | 56% | View |
Submit your RFQ for USF1C150MDD and get a quote within 24 hours.
