CAP ALUM 33UF 20% 10V RADIAL

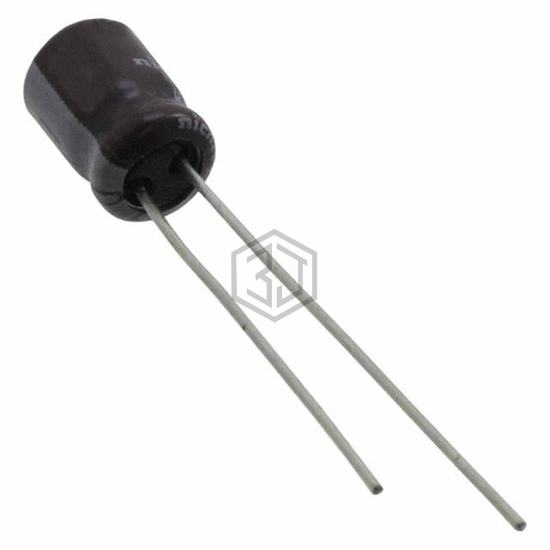

USF1A330MDD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,745
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1A330MDD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1A330MDD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 100% | View |
| UMF1C330MDD1TE | Nichicon | CAP ALUM 33UF 20% 16V RADIAL | 83% | View |
| EKRG160ELL330ME07D | United Chemi-Con | CAP ALUM 33UF 20% 16V RADIAL | 81% | View |
| 50NXA33MEFC6.3X11 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL | 72% | View |
| EEA-GA1H330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 61% | View |
| 336KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for USF1A330MDD1TE and get a quote within 24 hours.
