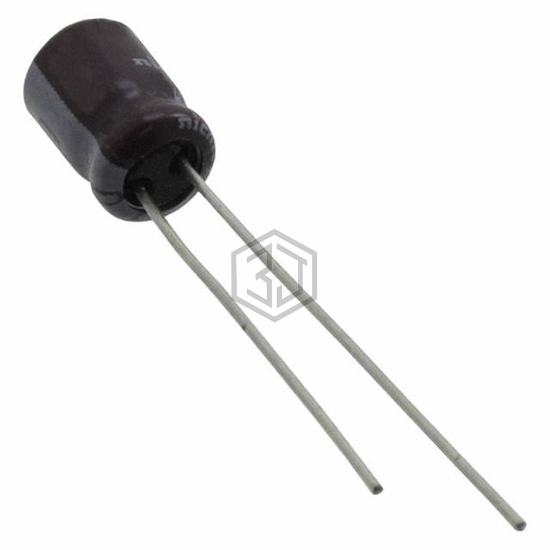

CAP ALUM 33UF 20% 10V RADIAL
USF1A330MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,520
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1A330MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1A330MDD1TD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 100% | View |
| UVZ0J330MDD | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 86% | View |
| UMF1E330MDD | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 77% | View |
| UST1V330MDD | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 72% | View |
| EKMG500EC3330ME11D | United Chemi-Con | CAP ALUM 33UF 20% 50V RADIAL | 58% | View |
| EKMQ500ELL330ME11D | United Chemi-Con | CAP ALUM 33UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for USF1A330MDD and get a quote within 24 hours.
