CAP ALUM 68UF 20% 250V RADIAL

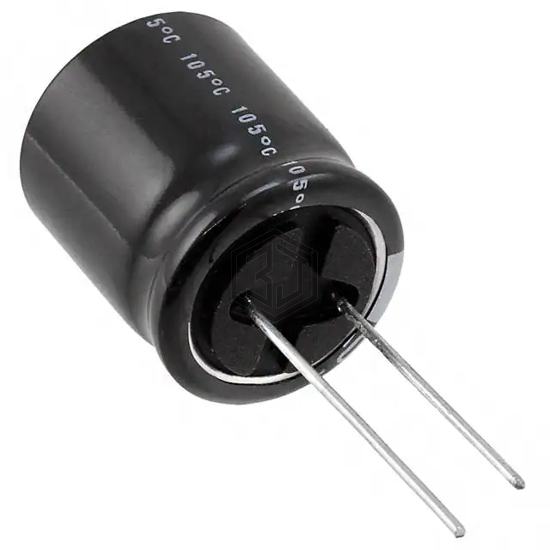

URZ2E680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43866C2686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 250V RADIAL | 100% | View |
| 200TXW68MEFR10X25 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 84% | View |
| MAL216356689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 400V SNAP | 77% | View |
| UCY2V680MHD6 | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 64% | View |
| 400LXW68MEFR14.5X25 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 64% | View |
| 25ZLJ68M5X11 | Rubycon | CAP ALUM 68UF 20% 25V RADIAL | 57% | View |
