CAP ALUM 47UF 20% 250V RADIAL

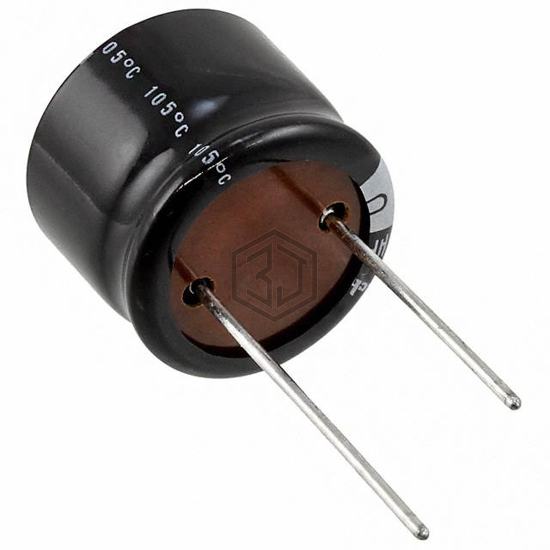

URZ2E470MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 1,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 480 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2G470MHD1TN | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 86% | View |
| 200WXA47MEFC16X16 | Rubycon | CAP ALUM 47UF 20% 200V RADIAL | 83% | View |
| UBT2D470MHD8 | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 73% | View |
| 510DX476M063CC2D | Vishay Sprague | CAP ALUM 47UF 20% 63V RADIAL | 69% | View |
| 510D476M035CC3D | Vishay Sprague | CAP ALUM 47UF 20% 35V RADIAL | 56% | View |
| 511D476M100CG4D | Vishay Sprague | CAP ALUM 47UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for URZ2E470MRD6 and get a quote within 24 hours.
