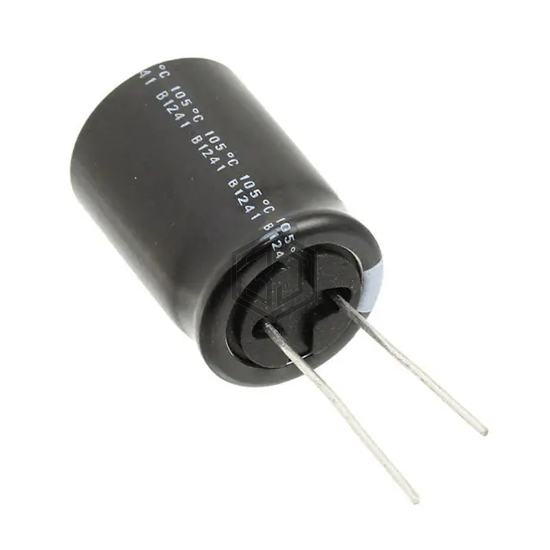

CAP ALUM 100UF 20% 250V RADIAL
URZ2E101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2D101MHD3TN | Nichicon | CAP ALUM 100UF 20% 200V RADIAL | 74% | View |
| EKXJ351ELL101MK45S | United Chemi-Con | CAP ALUM 100UF 20% 350V RADIAL | 67% | View |
| 50YXS100MEFC8X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 67% | View |
| UBT2A101MHD1TO | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 66% | View |
| 100PX100MEFC10X16 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 59% | View |
| 50YXG100MEFCT78X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 58% | View |
