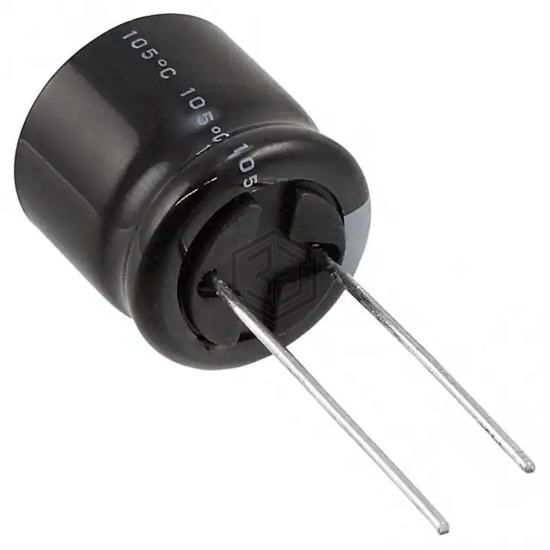

CAP ALUM 47UF 20% 200V RADIAL
URZ2D470MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,048
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 480 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63RX3047MT810X12.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 73% | View |
| 860080774008 | Würth Elektronik | CAP ALUM 47UF 20% 63V RADIAL | 66% | View |
| 450HXW47MEFR12.5X25 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 61% | View |
| MAL216030479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 35V RADIAL | 56% | View |
| SEK470M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 25V RADIAL | 56% | View |
| EGXF401ELL470MU30S | United Chemi-Con | CAP ALUM 47UF 20% 400V RADIAL TH | 55% | View |
Submit your RFQ for URZ2D470MHD6 and get a quote within 24 hours.
