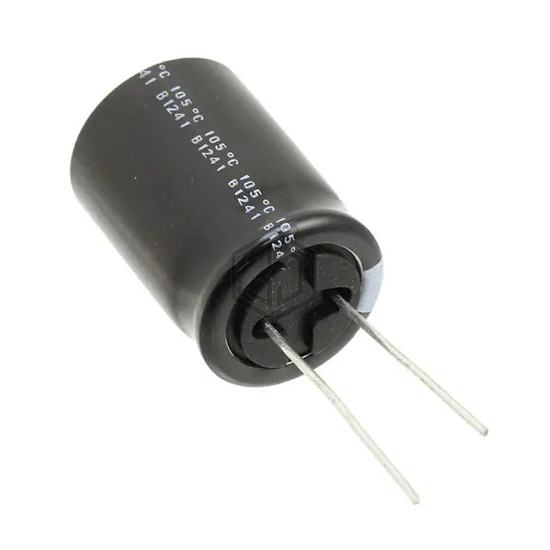

CAP ALUM 150UF 20% 200V RADIAL
URZ2D151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 144
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 816 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211929151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 100V AXIAL | 71% | View |
| EEU-FR1J151LB | Panasonic Electronic Components | CAP ALUM 150UF 20% 63V RADIAL | 70% | View |
| EKXG201ELL151ML25S | United Chemi-Con | CAP ALUM 150UF 20% 200V RADIAL | 68% | View |
| EKXJ221ELL151MM20S | United Chemi-Con | CAP ALUM 150UF 20% 220V RADIAL | 66% | View |
| MAL214859151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 100V RADIAL | 60% | View |
| B43640B9157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 59% | View |
Submit your RFQ for URZ2D151MHD and get a quote within 24 hours.
