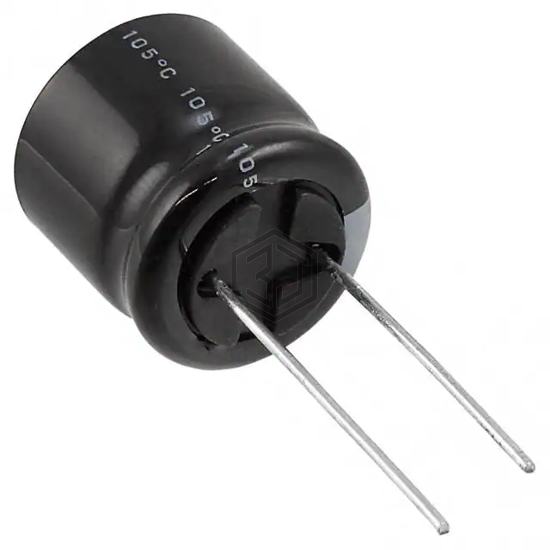

CAP ALUM 68UF 20% 160V RADIAL
URZ2C680MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 4,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2D680MRD6 | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 91% | View |
| URZ2D680MHD1TN | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 91% | View |
| UAQ2D680MHD1TO | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 80% | View |
| 80ZLH68MEFCT78X16 | Rubycon | CAP ALUM 68UF 20% 80V RADIAL | 66% | View |
| EEU-FC1J680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V RADIAL | 62% | View |
| 860160674018 | Würth Elektronik | CAP ALUM 68UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for URZ2C680MHD6 and get a quote within 24 hours.
