CAP ALUM 47UF 20% 160V RADIAL

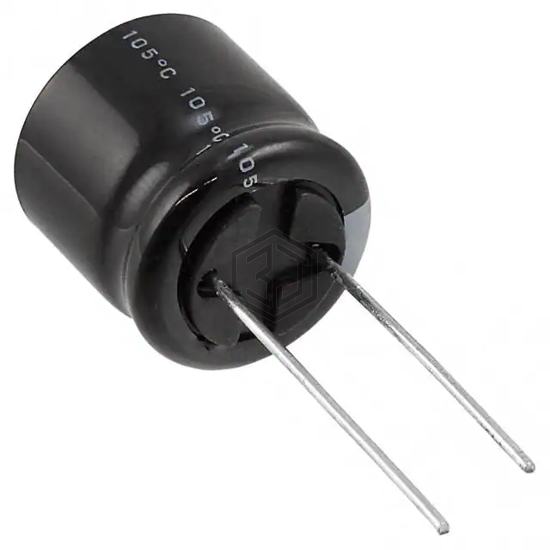

URZ2C470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 4,359
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 480 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215293475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 81% | View |
| 100ZLH47MEFCT78X16 | Rubycon | CAP ALUM 47UF 20% 100V RADIAL | 80% | View |
| 63RX3047M10X12.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 73% | View |
| EKXJ251ELL470MJ25S | United Chemi-Con | CAP ALUM 47UF 20% 250V RADIAL | 73% | View |
| 476KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 100V RADIAL | 69% | View |
| UCY2D470MHD3 | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 64% | View |
Submit your RFQ for URZ2C470MHD and get a quote within 24 hours.
