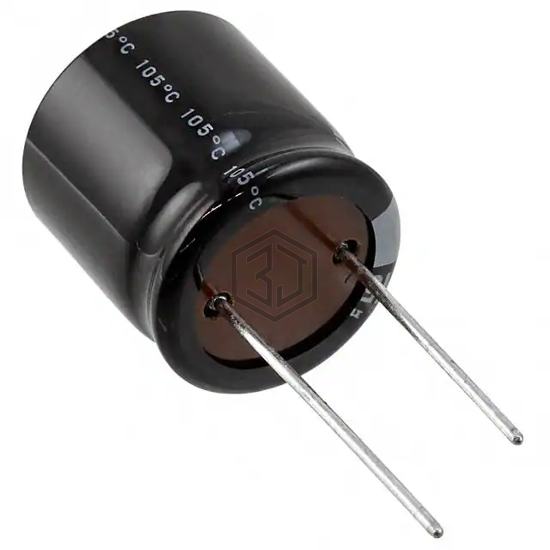

CAP ALUM 150UF 20% 160V RADIAL
URZ2C151MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 4,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 816 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A151S | Panasonic Electronic Components | CAP ALUM 150UF 20% 100V RADIAL | 79% | View |
| 50ZLH150MEFCT810X12.5 | Rubycon | CAP ALUM 150UF 20% 50V RADIAL | 70% | View |
| EEU-FC1V151BJ | Panasonic Electronic Components | CAP ALUM 150UF 20% 35V RADIAL | 60% | View |
| B43508A9157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 58% | View |
| B43642A9157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 57% | View |
| 30D157G025DF5T | Vishay Sprague | CAP ALUM 150UF 25V AXIAL | 56% | View |
