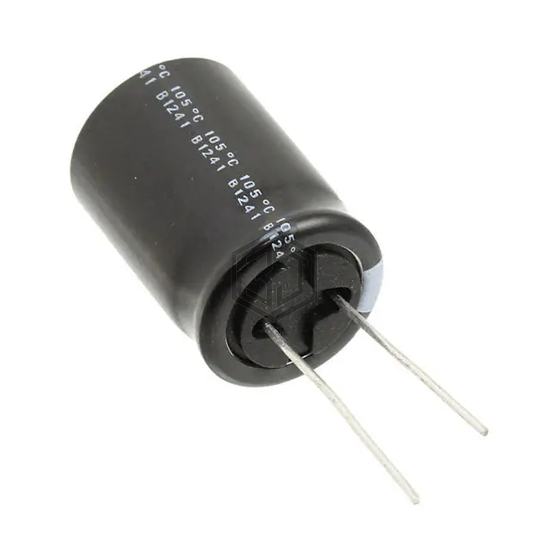

CAP ALUM 150UF 20% 160V RADIAL
URZ2C151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,745
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 816 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2C151MHD8 | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 91% | View |
| UCY2C151MHD9TO | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 76% | View |
| EKY-500ETD151MJC5S | United Chemi-Con | CAP ALUM 150UF 20% 50V RADIAL | 65% | View |
| EKMZ421VSN151MP25S | United Chemi-Con | CAP ALUM 150UF 20% 420V SNAP | 56% | View |
| B43504A157M87 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 420V SNAP | 55% | View |
| B43509B9157M080 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 54% | View |
