CAP ALUM 330UF 20% 100V RADIAL

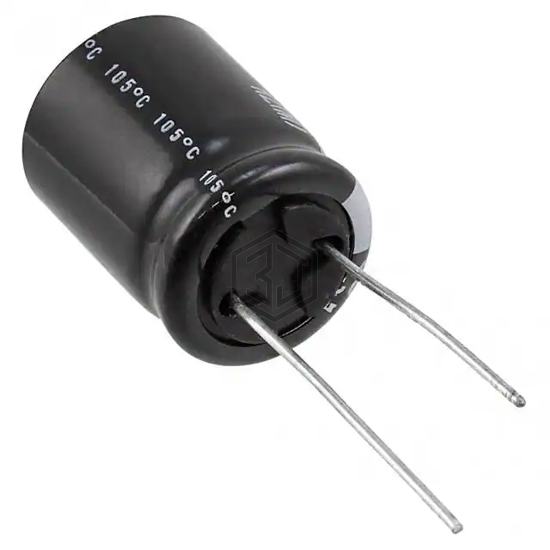

URZ2A331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,414
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160475020 | Würth Elektronik | CAP ALUM 330UF 20% 25V RADIAL | 76% | View |
| MAL216050331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 66% | View |
| B41888C4337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 16V RADIAL | 66% | View |
| ELXV250ETC331MH20D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 63% | View |
| ECA-1VHG331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL | 58% | View |
| 678D337M010CD3D | Vishay Sprague | CAP ALUM 330UF 20% 10V RADIAL | 53% | View |
Submit your RFQ for URZ2A331MHD and get a quote within 24 hours.
