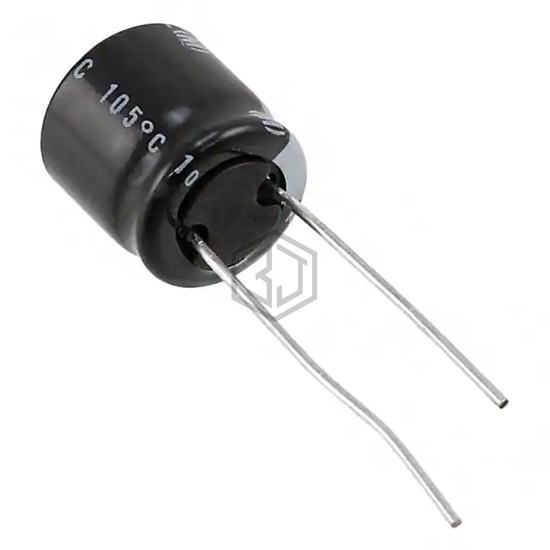

CAP ALUM 33UF 20% 100V RADIAL
URZ2A330MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,102
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 260 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URZ2A330MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG101ELL330MHB5D | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 97% | View |
| UPJ2A330MPD6/TD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 91% | View |
| UBW1H330MPD1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 72% | View |
| EEU-FC1V330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V RADIAL | 66% | View |
| EEU-HD1H330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 61% | View |
| UBW1J330MPD | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for URZ2A330MPD and get a quote within 24 hours.
