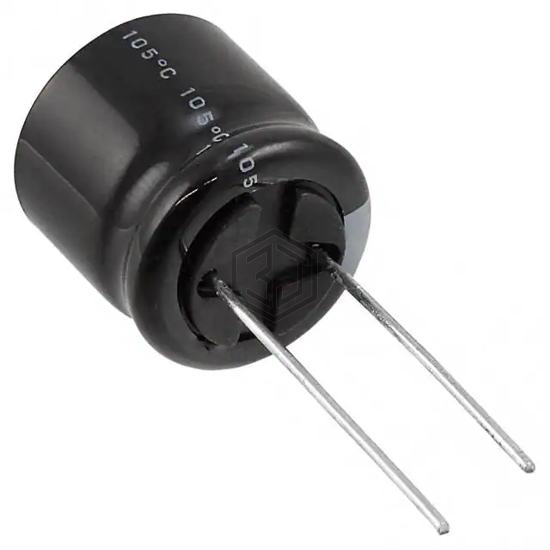

CAP ALUM 220UF 20% 100V RADIAL
URZ2A221MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG101ELL221MK25S | United Chemi-Con | CAP ALUM 220UF 20% 100V RADIAL | 100% | View |
| 100YXA220M12.5X20 | Rubycon | CAP ALUM 220UF 20% 100V RADIAL | 92% | View |
| RJA221M1HBK-1016S | SURGE | CAP ALUM 220UF 20% 50V RADIAL | 63% | View |
| ECA-1HHG221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V RADIAL | 59% | View |
| SEK221M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
| 672D227H6R3CG5C | Vishay Sprague | CAP ALUM 220UF 6.3V RADIAL | 56% | View |
Submit your RFQ for URZ2A221MHD1TN and get a quote within 24 hours.
