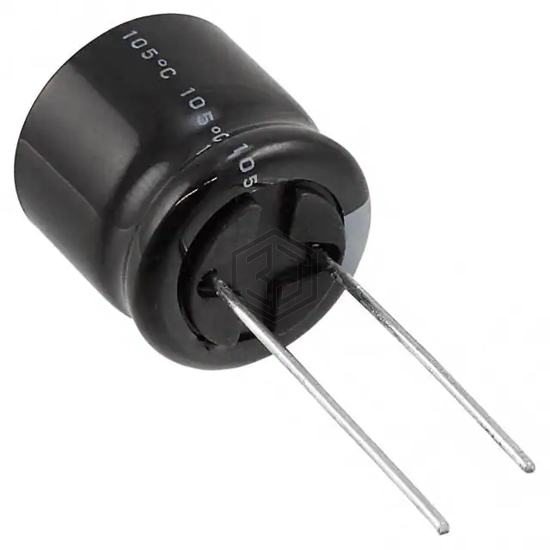

CAP ALUM 220UF 20% 100V RADIAL
URZ2A221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 962
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2A221MHD | Nichicon | CAP ALUM 220UF 20% 100V RADIAL | 91% | View |
| MALREKB05DD322J00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 80% | View |
| UVZ1J221MPH | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 72% | View |
| 227FXM063M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 72% | View |
| 227KXM035MLN | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 35V RADIAL | 66% | View |
| MAL215086221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 65% | View |
Submit your RFQ for URZ2A221MHD and get a quote within 24 hours.
