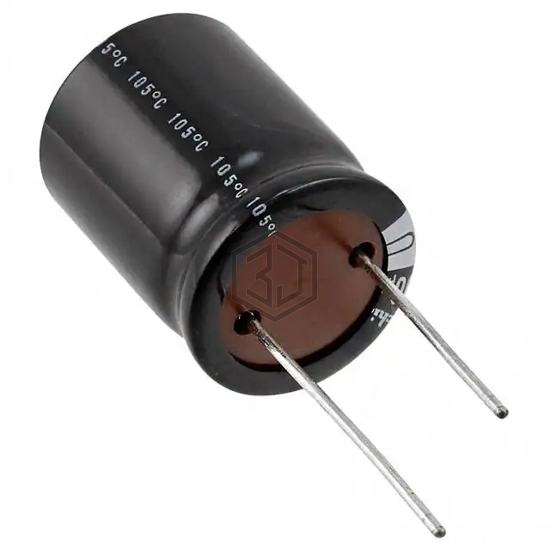

CAP ALUM 3300UF 20% 35V RADIAL
URZ1V332MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6445 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY350ELL332MM40S | United Chemi-Con | CAP ALUM 3300UF 20% 35V RADIAL | 100% | View |
| MAL213656332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 79% | View |
| ELXZ6R3ETE332MK20S | United Chemi-Con | CAP ALUM 3300UF 20% 6.3V RADIAL | 75% | View |
| UPA1E332MHD6TN | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 68% | View |
| MAL211945332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 16V AXIAL | 67% | View |
| UPA1E332MHD | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 66% | View |
Submit your RFQ for URZ1V332MRD and get a quote within 24 hours.
