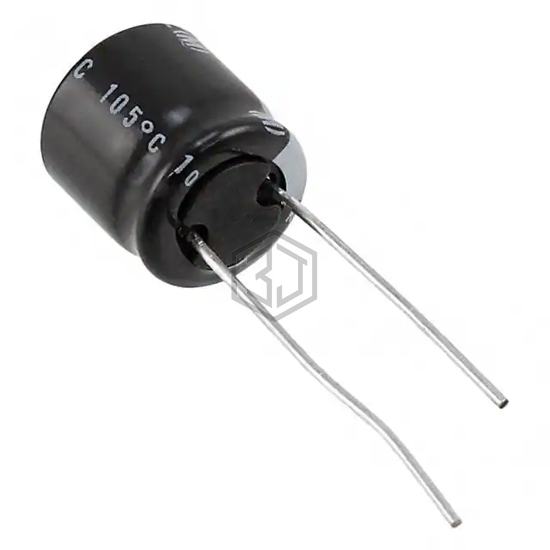

CAP ALUM 220UF 20% 35V RADIAL
URZ1V221MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,408
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 235 mA @ 120 Hz |
| Ripple Current @ High Frequency | 352.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URZ1V221MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1V221MHD1TO | Nichicon | CAP ALUM 220UF 20% 35V RADIAL | 90% | View |
| UBX1V221MHL | Nichicon | CAP ALUM 220UF 20% 35V RADIAL | 81% | View |
| UBW1E221MPD | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 65% | View |
| MAL214065221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 60% | View |
| UBW1C221MPD1TD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 59% | View |
| ECA-0JHG221I | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V RADIAL | 54% | View |
