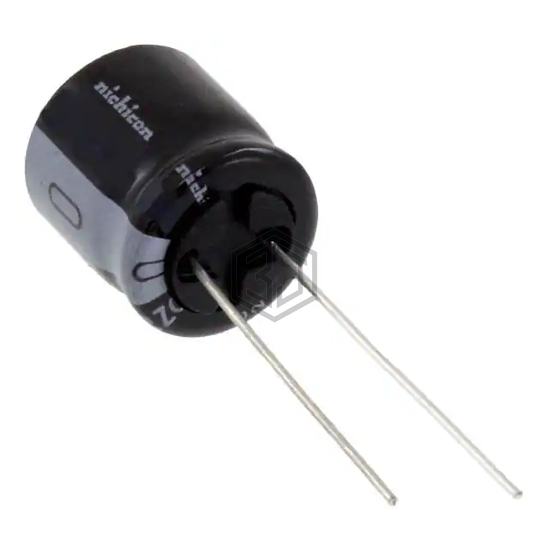

CAP ALUM 220UF 20% 63V RADIAL
URZ1J221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,826
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 604D221F075GJ2 | Vishay Sprague | CAP ALUM 220UF 75V AXIAL | 89% | View |
| RXW221M1JBK-1025S | Surge | CAP ALUM 63V POLAR | 85% | View |
| LXZ35VB221M8X15LL | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 73% | View |
| 35YXA220MEFCT810X12.5 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 72% | View |
| ECA-1VHG221BJ | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 69% | View |
| MAL213669221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V RADIAL | 59% | View |
Submit your RFQ for URZ1J221MHD and get a quote within 24 hours.
