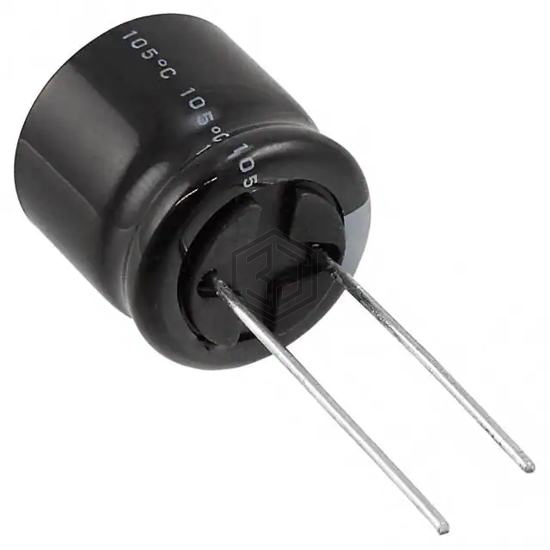

CAP ALUM 470UF 20% 50V RADIAL
URZ1H471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214051471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 99% | View |
| ECA-1HHG471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 50V RADIAL | 99% | View |
| RXK471M1CBK-0815S | SURGE | CAP ALUM 470UF 20% 16V RADIAL | 68% | View |
| EY1J471MP51220 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| 517D477M016CC6AE3 | Vishay Sprague | CAP ALUM 470UF 20% 16V RADIAL | 64% | View |
| ELXY250ELL471MK15S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for URZ1H471MHD and get a quote within 24 hours.
