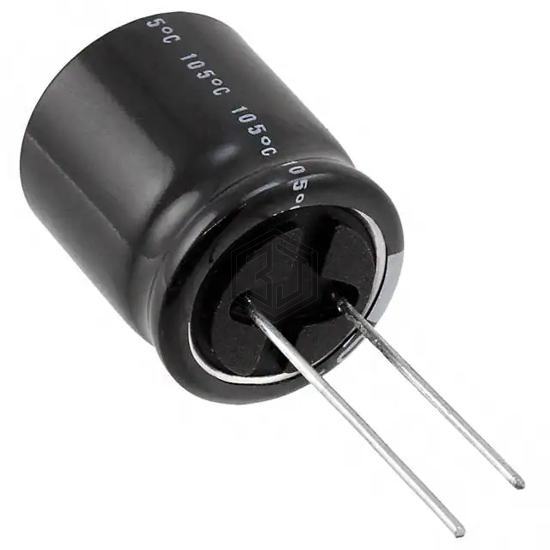

CAP ALUM 1000UF 20% 50V RADIAL
URZ1H102MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 72
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 954.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211947102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 40V AXIAL | 77% | View |
| EEU-FC1A102LB | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 75% | View |
| MAL225031102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 73% | View |
| B41888G6108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 50V RADIAL | 68% | View |
| EKMG160ELL102MJ16S | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 66% | View |
| B41789K7108Q001 | EPCOS - TDK Electronics | CAP ALUM 1000UF 40V RADIAL | 55% | View |
Submit your RFQ for URZ1H102MHD1TN and get a quote within 24 hours.
