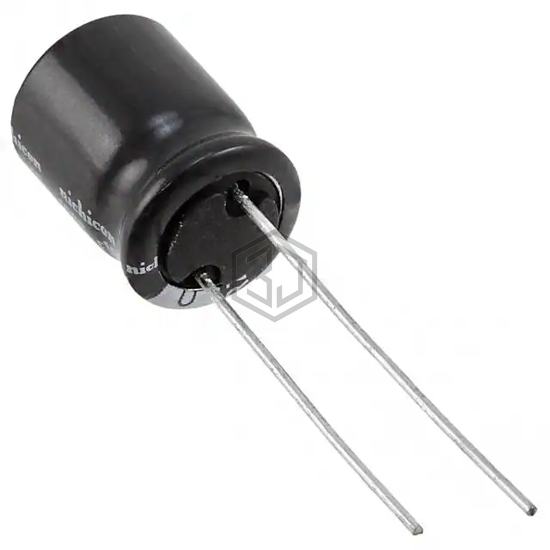

CAP ALUM 470UF 20% 25V RADIAL
URZ1E471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,097
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG250EMC471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 99% | View |
| EKMG250ETD471MJC5S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 92% | View |
| EKMG500ELL471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 62% | View |
| EKMQ500ELL471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 61% | View |
| MAL211927471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 40V AXIAL | 59% | View |
| UBW1V471MPD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for URZ1E471MPD and get a quote within 24 hours.
