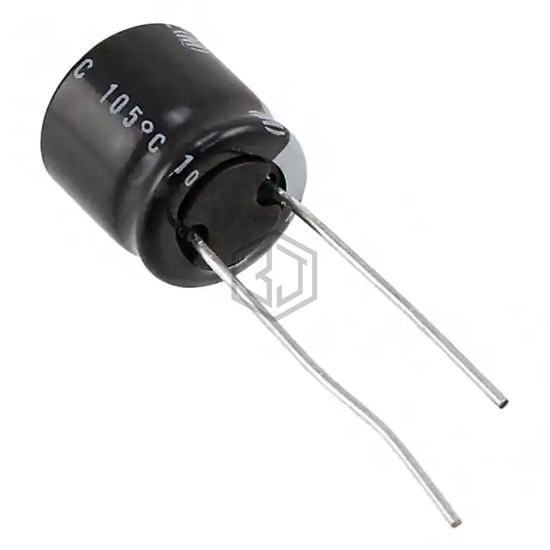

CAP ALUM 330UF 20% 25V RADIAL
URZ1E331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,083
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 405 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URZ1E331MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXA330MEFCT810X12.5 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 93% | View |
| UKT1C331MPD1TD | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 86% | View |
| EEU-FC1E331L | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 72% | View |
| 337RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| 337KXM025MLN | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 25V RADIAL | 62% | View |
| RXW331M1VBK-0820S | SURGE | CAP ALUM 330UF 20% 35V RADIAL | 57% | View |
Submit your RFQ for URZ1E331MPD and get a quote within 24 hours.
